MRD X - S - CR - 005 - D2

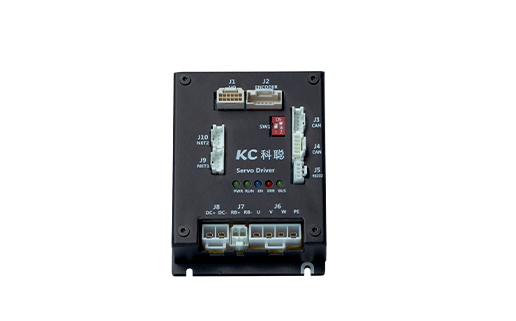

MRD Series Low-Voltage Servo Drives
MRD Series servo drives are ultra-compact motor drives designed for mobile robots. Their modular design and reliable control interfaces enable fast and convenient system integration.
Recommended applicable types
Fork type
Jacking type
Platform handling type
Cooperation type
Roller type
Pick type
Mecanum type
Towing type
Parking type
Outdoor type
Commercial service type
User-defined type
Basic parameters
Model | MRD200-S-CR-005 | MRD400-S-CR-005 | MRD600-S-CR-005 | MRD750-S-CR-005 | MRD1000-S-CR-005 |
Description | 200 W Low-Voltage Servo Drive | 400 W Low-Voltage Servo Drive | 600 W Low-Voltage Servo Drive | 750 W Low-Voltage Servo Drive | 1000 W Low-Voltage Servo Drive |
Dimensions | 107x77.4x39 mm | ||||
Power Supply | （18~60）VDC | ||||
Maximum Continuous Current | 6 Arms | 10 Arms | 15 Arms | 19 Arms | 28 Arms |
Maximum Peak Output Current | 19.6 Ap | 31 Ap | 49.3Ap | 59Ap | 87Ap |
Communication Interface | CAN | ||||
Debug Interface | RS232 | ||||
Feedback Signal | Absolute Encoder | ||||
Brake Function | 1 Channel 24 V/1 A Brake Control Output (External 24 V Supply) | ||||
Cooling Method | Natural Cooling | Natural Cooling.For prolonged full-load operation, mount the drive base firmly against the vehicle body or use a heat sink for additional cooling. | |||
Protection Functions | Overvoltage, Undervoltage, Motor Overtemperature, Short-Circuit, Drive Overtemperature Protection, etc. | ||||
Operating Temperature | ≥- 20 ℃,≤+ 70 ℃ | ||||
Storage Temperature | ≥- 40 ℃,≤+ 85 ℃ | ||||
EMC Performance | Industrial Level 2, Class B | ||||
Operating Humidity (%) | 10%–90% RH, No Condensation | ||||
Storage Humidity (%) | 5%–95% RH, No Condensation | ||||
Corrosion Resistance | Meets Company Corrosion-Resistance Requirements | ||||
Protection Rating | IP20 | ||||
Mounting Method | Horizontal Mounting | ||||
